Dichroic mirror

PRODUCTS > Optical filter > Dichroic mirror

Dichroic mirror

產(chǎn)品詳細(xì)

Brand: Xinzhao

Model: XZ-Mirror

Standard: US military standard

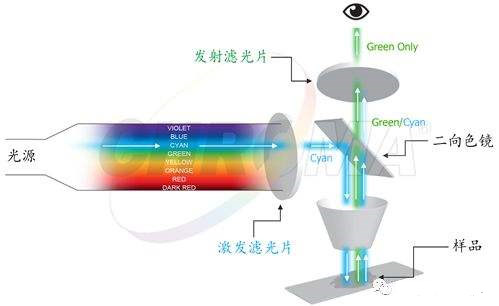

Introduction: Dichroic mirrors, also known as dichroic mirrors (DM), are mainly used to separate the three primary colors of red, green and blue, which can improve light utilization and color saturation. Various gradient dichroic mirrors can be provided according to customer requirements.

General parameters:

Material	Optical glass (ultra-white glass, K9, B270, BK7, etc.)
shape	Square, round, special shape, etc.
Size range	Round: φ5~150mm; Square: 8X8~150X150mm
Product thickness	1~5mm
Incident angle	45°/42~48°
Process method	Medium dura mater
Clear aperture	95%
Environmental test	MIL-STD-810F

Product Details:

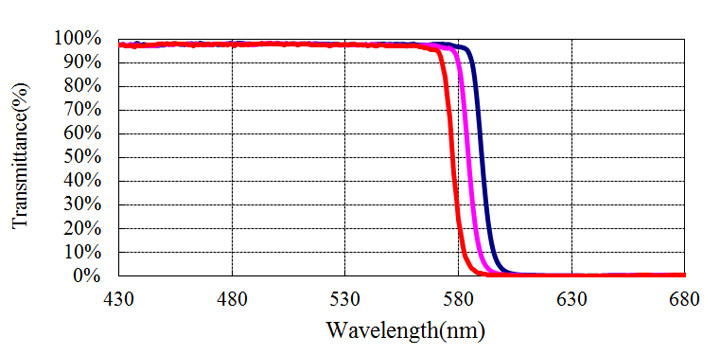

model	Product Category	Transmission band	Reflection band	Transmittance	Reflectivity	AR film band	Finish
XZ-DM	Anti-red and blue-green	430~588nm	600~650nm	T>95%	R>95%	420~680nm	60-40
XZ-DM	Translucent blue and red and green	430~470nm	494~650nm	T>95%	R>95%	420~680nm	60-40
XZ-SJ	Translucent red and green against blue	510~680nm	450~480nm	T>95%	R>95%	420~680nm	60-40
XZ-SJ	Green and red	530~550nm	600~650nm	T>95%	R>95%	420~680nm	60-40
XZ-SJ	Translucent blue and green reverse red	420~560nm	600~650nm	T>95%	R>95%	420~680nm	60-40
